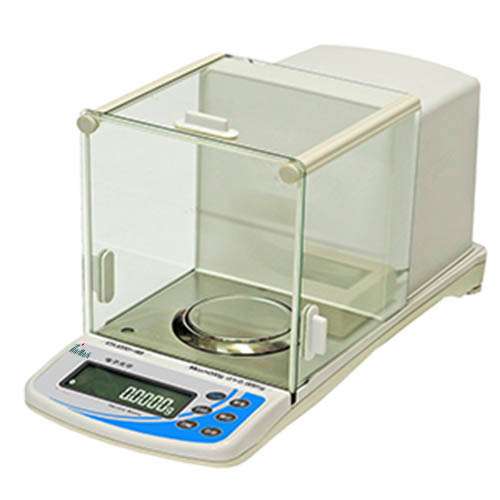

Diamond Analytical Balance DAB Series (0.00001g or 0.01mg)
Series DAB220, DAB210, DAB200, DAB120, DAB100
- Post electromagnetic force transducer;
- apacious weighing room;
- Single key internal calibration; auto-timing calibration;
- Auto-calibration along with changeable temperature;
- Large LCD display screen with white background;
- Diversified weighing units and counting weighing modes, units conversion and data output;
- Over-load/lack-load alarm;
- Full span tare;
- Weighing date accumulation/decrement modes and under-hook weighing ,etc.
[it_woo_product_table id="3"]
More Details about Diamond Analytical Balance
| Model/Series | DBA series | ||
| Model | DAB220, DAB210, DAB200, DAB120, DAB100 | ||
| Maximum weighing | 110-220g | ||
| precision | 0.0001g (0.1mg) | Minimum weighing | 0.05g (50mg) |
| repeatability error | ≤±0.0001g(0.1mg) | linearity error | ≤±0.0002g(0.2mg) |
| Four Corner Error | ≤±0.0002g(0.2mg) | stable schedule | <3 seconds |
| Pan size | Φ90mm | Weighing chamber size | 190×155×210mm |
| Dimensions | 460×205×280 mm | Package Size | 570×370×450 |
| ambient temperature | 0℃～45℃ | External humidity | 20%RH—85%RH |
| Calibration method | fully automatic | Test weight | Standard ring weight (F1 grade 100g/200g) |
| weights | built-in | gross weight | 11.5 |
| weight | 9.1kg | power consumption | <20W |
| power supply | AC220V±10%, 50Hz | Bottom Hook/Static Stand | Optional (1 type) |
| Display method | Super large LCD liquid crystal display | measurement | count/percentage |
| computer interface | RS232 | function key | Switch/Tare/Auto Calibration/Function |
| weighing room | Three door large windproof cover | Bottom Hook/Static Stand | Optional (1 type) |
| unit conversion | grams/carats/pounds/oz | measurement | count/percentage |
